V type static classifier

60SArtificial response

30MinInternal technical reply

24HourFree programme

V type static classifier

SketchThe company has created a new global cement spares service model, providing crushers, stackers and reclaimers, pipe mills, hoists, vertical mills, preheaters, rotary kiln, chillers, burners, humidification for new dry process cement production lines.

Feed grain size≤25mm

Throughput150-1600t/h

【Application area】Cement grinding, gravel yard, mining, coal mining, concrete mixing station, dry powder mortar, quartz sand, etc.

【Applicable material】River pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, construction waste, iron ore, gold ore, etc.

GET PRICE

7*24 hours free consultation hotline

15195977196

产品概述
我公司开发的V型静态选粉机是一种新型的分级设备,主要运用于大颗料物料的打散与分极。V型选粉机不需要任何动力,利用气流的不同速度梯度,对粉状物料进行粗分级处理。且内部采用大量的耐磨防护材料,减少对设备的磨损。
突出优势
1.泻落式分级,粒度分级范围广
2.梯形结构兼有打散功能,分级效果好
3.内部无动力部件,结构简单,安装维护方便
4.气流调节粒度分布和流速,运行稳定

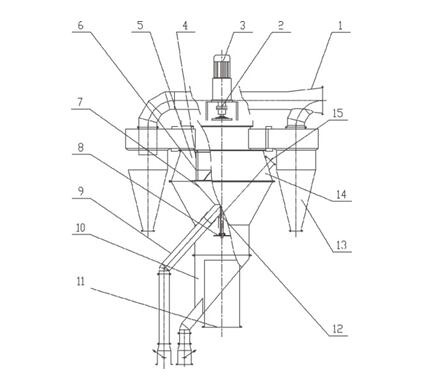

Working principle

物料经提升机从喂料溜子全宽度喂入V型选粉机中,均匀分散通过进风导流板进入选粉机分选区域。与此同时,由于选粉机内为负压状态,气流从选粉机壳体进入选粉机,穿过均匀散下的物料,再通过出风导流板,后从出风管排出。由于重力作用,物料在下落过程中受到导流板的冲击而变的松散,在气流的折流作用下,其中的细粉会随气流经由出风管排出,直接进入高效选粉机内进行分选处理,并由袋收尘器收集为成品。粗粉在经过空气调节阀的二次分选后,通过粗粉排料口排出。

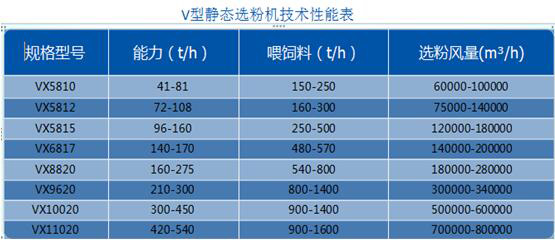

Technical parameter


Customer centered, heart moving customers

Creating value for customers is the consistent persistence of Lafa, customer demand-oriented, customer satisfaction is the significance of our efforts to adhere to. 365 days all-weather to provide you with a sound after-sales service, customer success is our unchanged goal, is willing to become a mentor in your career, mutual success.

Case
